A pendulum bob is a crucial component in pendulum systems, particularly in pendulum clocks. Here are some key points about pendulum bobs:

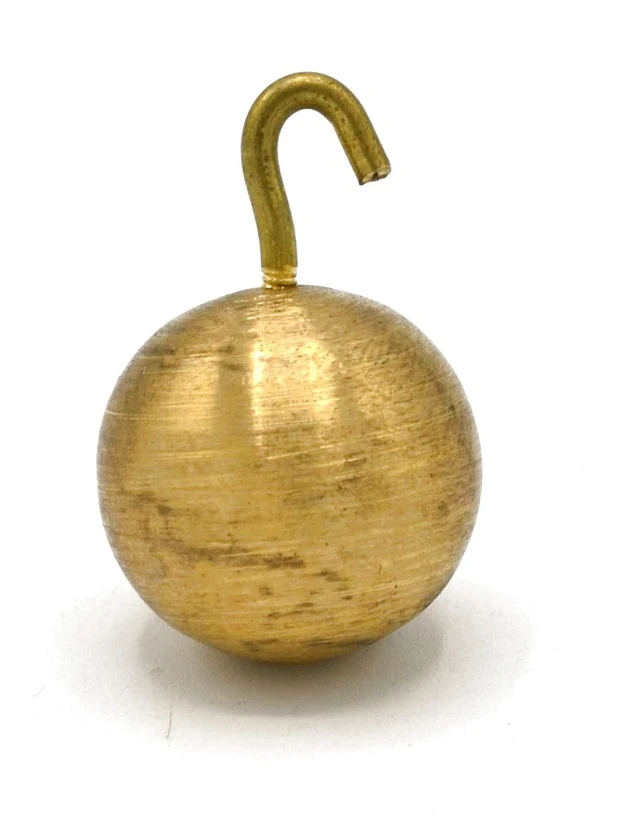

1. Definition: A bob is a heavy object (also known as a “weight” or “mass”) attached to the end of a pendulum. While pendulums can theoretically take various shapes, the most common design involves a weight or bob connected to the bottom end of a rod. The top end of the rod is attached to a pivot, allowing the pendulum to swing back and forth.

2. Purpose: The construction of a pendulum bob has specific advantages:

   • Center of Mass: By positioning the center of mass close to the physical end of the pendulum (farthest from the pivot), the moment of inertia is maximized. This minimizes the required pendulum length for a given period.
   • Reduced Air Resistance: Pendulum clocks often use round, flat disk-shaped bobs (lens-shaped in section) to reduce aerodynamic drag. Older clocks may have decorative carvings and shapes characteristic of their type.
   • Adjustment: The rate of the pendulum can be adjusted by moving the bob up or down on the pendulum rod. Raising the bob shortens the pendulum, causing it to beat more quickly and gain time.

3. Materials and Shape:

   • Pendulum bobs are typically made of dense metals such as iron or brass. Lead, although denser, is avoided due to its softness.
   • The shape of the bob affects its aerodynamic properties. Traditional designs favor lens-shaped disks to minimize air resistance.

4. Rate Adjustment:

   • In most pendulum clocks, the rate is adjusted by moving the bob along the pendulum rod.
   • Height Adjustment: Turning an adjustment nut at the bottom of the pendulum rod changes the bob’s height.
   • Some bobs have levers or dials for fine-tuning, and precision clocks may even feature auxiliary weights for additional adjustment.

5. Effect on Period and Accuracy:

   • The weight of the bob itself doesn’t significantly impact the pendulum’s period.
   • However, a heavier bob helps maintain smooth motion until the next push from the escapement mechanism.
   • Increased bob weight improves the pendulum’s Q factor, enhancing accuracy by reducing dependence on escapement errors.
