Knife switches, also known as cutout switches or switchblade switches, serve several important functions in electrical circuits. Let’s explore their roles:

1. Manual Activation and Deactivation:

   • A knife switch allows manual control of electrical connection activation and deactivation using a knife-like metal lever.
   • When the blade is closed, electrical current flows through the circuit. Conversely, when the blade is open, the circuit breaks, preventing current flow.

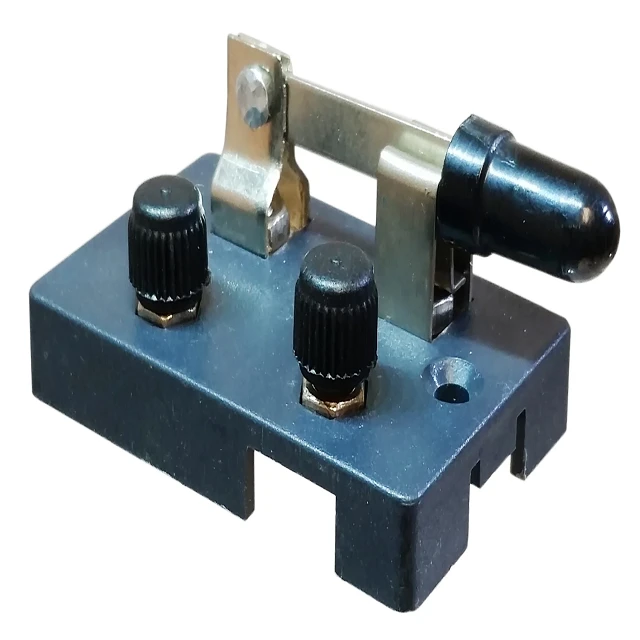

2. Components of a Knife Switch:

   • Blade: The knife-like lever is the blade, typically made of copper or brass for good electrical conductivity. It connects input and output terminals.
   • Handle: The handle allows users to manipulate the switch manually. By levering the blade, users control the electrical connection.
   • Hinge: The hinge enables the rotation of the blade. It is usually made of steel for smooth and stable operation.
   • Base: Knife switches have stable, insulated bases made of porcelain or Bakelite. This insulation prevents electrical shocks and short circuits.

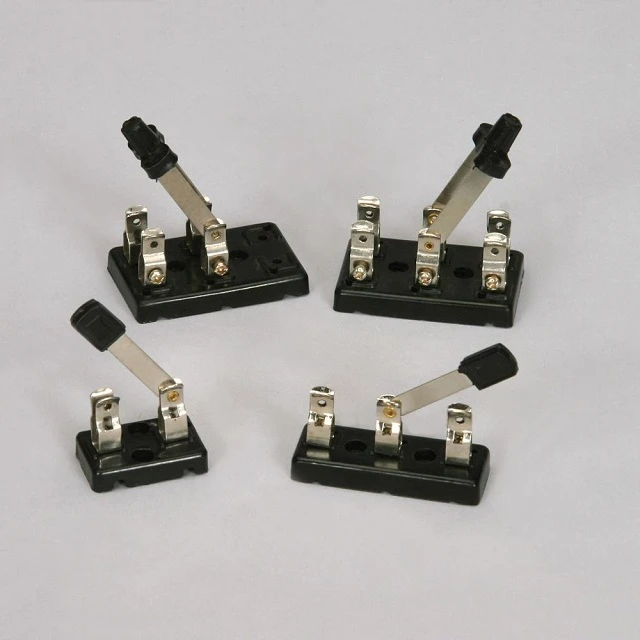

3. Types of Knife Switches:

   • One-Throw Knife Switch:
     • The simplest and most common type.
     • It has two positions: open and closed.
     • When the blade is closed, current flows; when open, the circuit breaks.
   • Double-Throw Knife Switch:
     • Can switch two circuits simultaneously.
     • It can be open, closed to one terminal, or closed to both.
     • Often used to regulate two circuits concurrently.
   • Fuse Knife Switch:
     • Equipped with a fuse for added safety.
     • When current exceeds a threshold, the fuse melts, breaking the circuit.

4. Applications of Knife Switches:

   • Educational Demonstrations:
     • Used to teach basic electrical principles due to their manual operation and clear connection.
   • Industrial Machinery:
     • Powers heavy machinery in industrial environments.
     • Enables easy and reliable power interruption for maintenance or safety.
   • Scientific Experiments:
     • Operates electrical circuits in labs, allowing precise manual control of electricity flow.
   • Amateur Electronics:
     • Hobbyists and DIY enthusiasts use knife switches for small projects and prototypes.
   • Historical Displays:
     • Used in museums and exhibitions to showcase the evolution of electrical systems.

5. Advantages of Knife Switches:

   • Manual Control:
     • Knife switches allow users to manually control electricity flow, making them versatile and practical.
