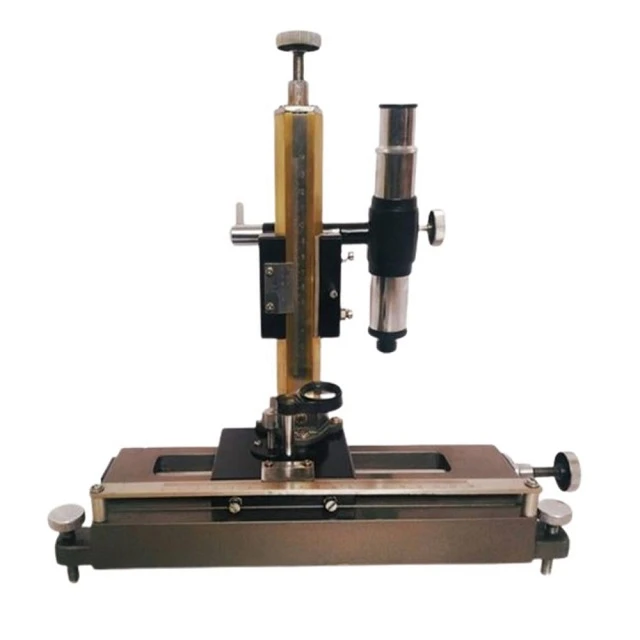

A traveling microscope is a precision instrument used for measuring length with remarkable accuracy, typically in the order of 0.01 mm. Let’s delve into its fascinating features:

1. Design and Components:

   • The instrument consists of a microscope mounted on two rails, which are either fixed to or part of a very rigid bed.
   • The rails allow the microscope to move along a horizontal axis, enabling coarse adjustments by sliding and fine adjustments through a turning screw.
   • The eyepiece of the microscope is equipped with fine cross-hairs to fix a precise position.
   • Better-quality traveling microscopes often have measuring scales made from Invar, a material chosen to minimize misreadings due to thermal effects.

2. Applications:

   • Laboratories: Traveling microscopes are used to measure the refractive index of flat specimens using the principles of ray optics (specifically, Duc de Chaulnes’ method).
   • Precision Measurements: They can accurately measure very short distances, such as the diameter of a capillary tube.
   • Vertical Measurements: Some models also measure vertically.
   • Educational Settings: These instruments are valuable in research, colleges, schools, and industrial laboratories.

3. Advantages and Limitations:

   • Advantages:
     • High precision and resolution.
     • Sturdy construction.
     • Coarse and fine adjustments for accurate positioning.
   • Limitations:
     • Superseded: Traveling microscopes have been largely replaced by more accurate and cost-effective electronic- and optically-based measuring devices.
     • Specific Use Cases: They are best suited for specific applications where their precision is essential.
