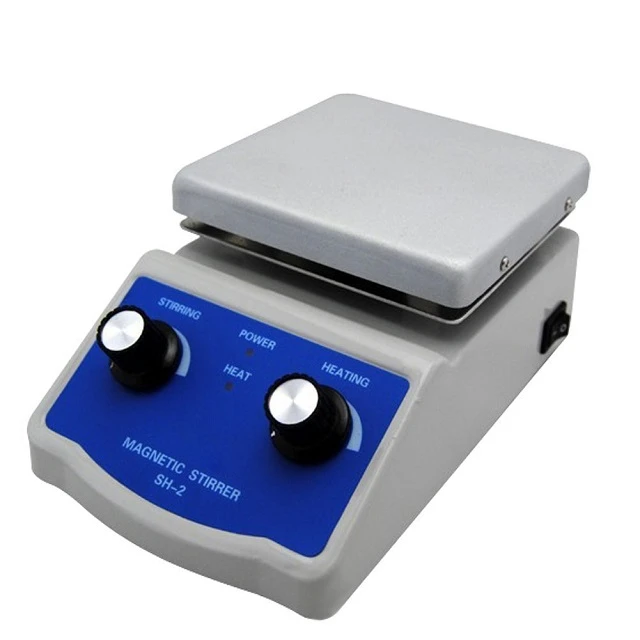

A magnetic stirrer with a hot plate is a versatile laboratory device that seamlessly combines two essential functions: stirring and heating. Let’s delve into the mechanics of this ingenious apparatus and explore how to effectively use it in a laboratory setting.

Mechanics of a Magnetic Hotplate Stirrer

1. Hot Plate: The hot plate is responsible for heating the liquid or solution placed on it. It provides a controlled and uniform temperature to facilitate chemical reactions, sample preparation, or other processes.

2. Magnetic Stir Bar: A magnetic stir bar (also known as a flea or stirring flea) is introduced into the liquid. This small, cylindrical bar contains a magnet. When placed in the liquid, it reacts to the rotating magnetic field generated beneath the hot plate. As a result, the stir bar spins, creating gentle and consistent stirring within the liquid.

3. Magnetic Field Generator: Beneath the hot plate, there’s a magnetic field generator. This component drives the rotation of the stir bar. The magnetic field ensures that no mechanical parts need to be placed inside the vessel, reducing the risk of contamination—especially crucial when working with sensitive materials.

Advantages of a Magnetic Hotplate Stirrer:

1. Contamination-Free Stirring: Since the stirring process occurs remotely via the magnetic field, there’s no need for mechanical stirring elements inside the vessel. This minimizes the risk of contamination.

2. Precise Control: The magnetic hotplate stirrer allows precise control over both stirring speed and temperature. Researchers can fine-tune these parameters to meet the specific requirements of their experiments.

3. Space-Efficient: By combining the functions of a hot plate and a magnetic stirrer, this dual-purpose device saves valuable laboratory space. Researchers can streamline their workspace by using a single apparatus instead of multiple devices.

How to Use a Magnetic Hotplate Stirrer:

1. Preparation:

   • Select an appropriate magnetic stir bar that matches the volume of the liquid you intend to stir.
   • Ensure the stir bar material is compatible with the liquid and the intended application.
   • Choose a vessel that comfortably fits on the hot plate and can accommodate the liquid.

2. Setup:

   • Place the chosen vessel onto the hot plate, ensuring it’s centered.
   • Connect the magnetic hotplate stirrer to a power source and turn it on.
   • Many models offer digital interfaces for easy adjustment of stirring speed and temperature. Set the desired parameters using these controls.

3. Adding the Liquid:

   • Carefully pour the liquid into the vessel.
   • Ensure that the liquid level is sufficient to immerse the magnetic stir bar, allowing for efficient stirring.
